INTRODUCTION

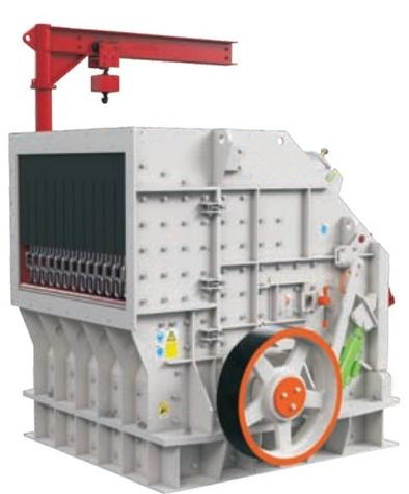

In  order  to  meet  the  users'    needs  for  high  income,  low  cost,  energy  saving and consumption reduction and solve the problems of cumbersome  operation  and  low  efficiency  of traditional  crushing  equipment, Vanguard   Machinery  has  developed  a  new  generation  of  high  efficiency  crusher— 6FX European type hydraulic impact crusher, which is based on the years  of  field  engineering  experience  and  users'  feedback  combined  with  the  latest research and development results.

This series of products are widely used in the crushing operation of artificial   sand   aggregate   for   hydropower   and   expressway,   which   can   provide  satisfactory  service  in  coarse  and  medium  crushing  and  waste  recycling  applications.

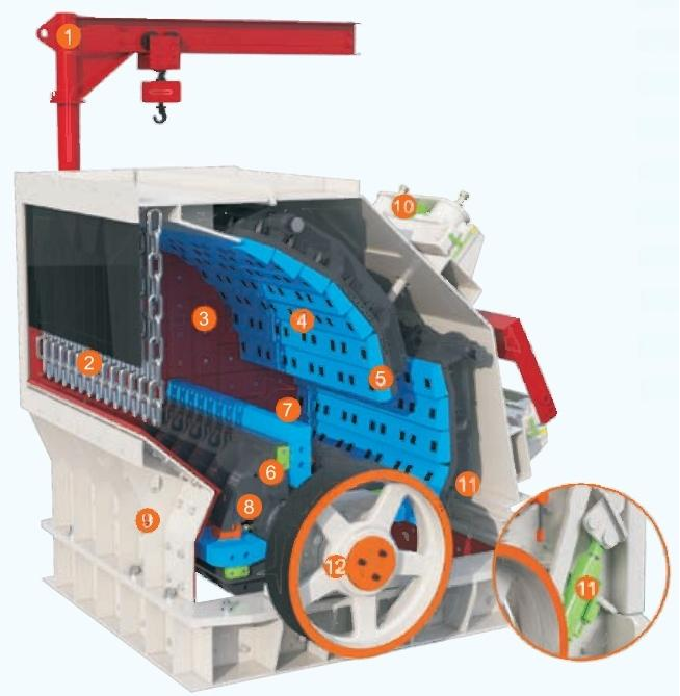

1、 Maintenance    Boom

2、 Dust-proof  Chain

3、Side Liner

4、 Impact  Rack

5、 Impact Liner

6、 Heavy  Rotor

7、 Flat   Hammer

8、 Flat Hammer Fixing Device

9、Frame

10、 Hydraulic Lifting Device

11、 Hydraulic Opening and Closing

12、 Pulley
